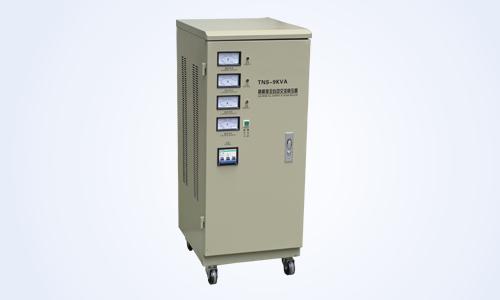

TNS-9KVA THREE PHASES FULLY AUTOMATIC VOLTAGE REGULATOR AVR
Overview
| Specification | TNS-1.5KVA | TNS-3KVA | TNS-4.5KVA | TNS-6KVA | TNS-9KVA | TNS-15KVA | |
| Input | Phase | Three phase | |||||
| Voltage | AC 260V-430V | AC 276V-430V | |||||
| Frequency | 50Hz/60Hz | ||||||
| Output | Voltage | 380V±3% | |||||
| Capacity | 1.2KW | 2.4KW | 3.6KW | 4.8KW | 7.2KW | 12KW | |
| Frequency | 50Hz/60Hz | ||||||
| Protection | Low Volt. | 318V±7V | |||||
| Over Volt. | 426V±7V | ||||||
| Over heat | Optional | ||||||
| Cooling system | Natural cooling system(Optional) | ||||||
| Short phase | Yes | ||||||
| Delay | 3-7sec/3-7min selectable | ||||||
| By pass | Auto/Manual Optional | ||||||
| Over load/short Circuit | Yes | ||||||
| Packaging | pcs per Carton | 1 | |||||
| Shipping Wt.(KG) | 28 | 29 | 31 | 51 | 54 | 89 | |
| Package Dimensions(mm) | 525*350*445 | 440*420*850 | 425*430*865 | 530*460*970 | |||
| Efficiency | AC-AC | >95% | |||||
| Acourstic | Noise level | ≤50dB | |||||
| Environmental | Temperature | -5℃~45℃ | |||||
| Humidity | 20% to 90% | ||||||
| QTY(pc) | 20FT | 320 | 320 | 150 | 150 | 150 | 100 |
| Specification | TNS-20KVA | TNS-30KVA | TNS-40KVA | TNS-60KVA | TNS-100KVA | |
| Input | Phase | Three phase | ||||
| Voltage | AC 276V-430V | AC 304V-456V | ||||
| Frequency | 50Hz/60Hz | |||||
| Output | Voltage | 380V±3% | ||||
| Capacity | 16KW | 24KW | 32KW | 48KW | 72KW | |
| Frequency | 50Hz/60Hz | |||||
| Protection | Low Volt. | 318V±7V | ||||
| Over Volt. | 426V±7V | |||||
| Over heat | Optional | |||||
| Cooling system | Natural cooling system(Optional) | |||||
| Short phase | Yes | |||||
| Delay | 3-7sec/3-7min selectable | |||||
| By pass | Auto/Manual Optional | |||||
| Over load/short Circuit | Yes | |||||
| Packaging | pcs per Carton | 1 | ||||
| Shipping Wt.(KG) | 95 | 110 | 206 | 220 | 295 | |
| Package Dimensions(mm) | 560*575*1150 | 760*710*1380 | 850*790*1530 | |||
| Efficiency | AC-AC | >95% | ||||
| Acourstic | Noise level | ≤50dB | ||||
| Environmental | Temperature | -5℃~45℃ | ||||
| Humidity | 20% to 90% | |||||
| QTY(pc) | 20FT | 70 | 70 | 20 | 20 | 14 |
