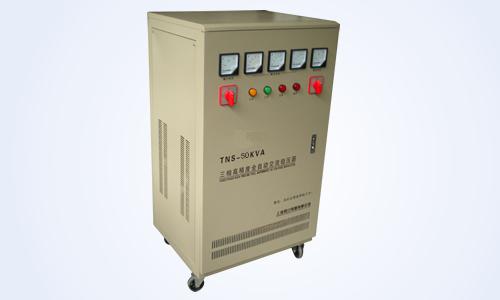

TNS-50KVA THREE PHASES FULLY AUTOMATIC VOLTAGE REGULATOR AVR

TNS-50KVA THREE PHASES FULLY AUTOMATIC VOLTAGE REGULATOR AVR

TNS-50KVA THREE PHASES FULLY AUTOMATIC VOLTAGE REGULATOR AVR

Overview

Specification TNS-1.5KVA TNS-3KVA TNS-4.5KVA TNS-6KVA TNS-9KVA TNS-15KVA
Input Phase Three phase
Voltage AC 260V-430V AC 276V-430V
Frequency 50Hz/60Hz
Output Voltage 380V±3%
Capacity 1.2KW 2.4KW 3.6KW 4.8KW 7.2KW 12KW
Frequency 50Hz/60Hz
Protection Low Volt. 318V±7V
Over Volt. 426V±7V
Over heat Optional
Cooling system Natural cooling system(Optional)
Short phase Yes
Delay 3-7sec/3-7min selectable
By pass Auto/Manual Optional
Over load/short Circuit Yes
Packaging pcs per Carton 1
Shipping Wt.(KG) 28 29 31 51 54 89
Package Dimensions(mm) 525*350*445 440*420*850 425*430*865 530*460*970
Efficiency AC-AC >95%
Acourstic Noise level ≤50dB
Environmental Temperature -5℃~45℃
Humidity 20% to 90%
QTY(pc) 20FT 320 320 150 150 150 100
Specification TNS-20KVA TNS-30KVA TNS-40KVA TNS-60KVA TNS-100KVA
Input Phase Three phase
Voltage AC 276V-430V AC 304V-456V
Frequency 50Hz/60Hz
Output Voltage 380V±3%
Capacity 16KW 24KW 32KW 48KW 72KW
Frequency 50Hz/60Hz
Protection Low Volt. 318V±7V
Over Volt. 426V±7V
Over heat Optional
Cooling system Natural cooling system(Optional)
Short phase Yes
Delay 3-7sec/3-7min selectable
By pass Auto/Manual Optional
Over load/short Circuit Yes
Packaging pcs per Carton 1
Shipping Wt.(KG) 95 110 206 220 295
Package Dimensions(mm) 560*575*1150 760*710*1380 850*790*1530
Efficiency AC-AC >95%
Acourstic Noise level ≤50dB
Environmental Temperature -5℃~45℃
Humidity 20% to 90%
QTY(pc) 20FT 70 70 20 20 14
