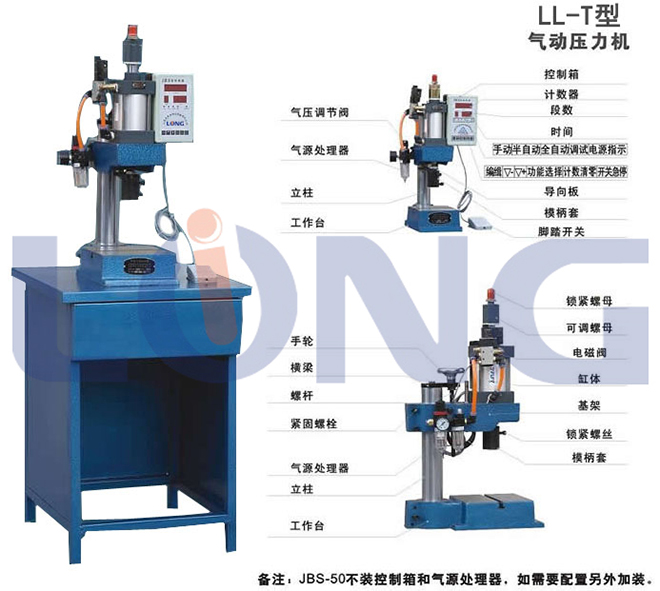

LL-63T pneumatic terminal press machine
Product Specification:
| Model | LL-50 | LL-63 | LL-80 | LL-100 | LL-125 | Note |
| Noral Force(KN) | 1 | 2 | 3.5 | 5 | 8 | |
| Cylinder stroke(mm) | 50(100) | 50(100) | 50(100) | 50(100) | 50(100) | ustomized |
| Adjustale stroke (mm) | 30(50) | 30(50) | 30(50) | 30(50) | 30(50) | ustomized |
| Air pressure (Mpa) | 0.4～0.7 | 0.4～0.7 | 0.4～0.7 | 0.4～0.7 | 0.4～0.7 | |
| Interval time (S) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Voltage (V) | AC-220 | AC-220 | AC-220 | AC-220 | AC-220 | |
| Current (mA) | 50 | 50 | 50 | 50 | 50 | |
| Dwell time (s) | ≥0.2 | ≥0.2 | ≥0.2 | ≥0.2 | ≥0.2 | |
| Temperature (℃) | -20～65 | -20～65 | -20～65 | -20～65 | -20～65 | |
| Weight (kg) | 10 | 35 | 45 | 45 | 75 | |
| Using air pressure(Boost-pressure) | Theoretic force | Theoretic force | Theoretic force | Theoretic force | Theoretic force | |
| 0.4Mpa | 0.79KN (79Kgf) | 1.12KN(112Kgf) | 1.8 1KN(181Kgf) | 2.94KN(294Kgf) | 4 .50KN(450Kgf) | |
| 0.5Mpa | 0.98KN (98Kgf) | 1.40 KN(140Kgf) | 2.27KN(2 27Kgf) | 3.68KN(368Kgf) | 78.50KN(7850Kgf) | |
| 0.6Mpa | 1.18KN(118Kgf) | 1.68KN(168Kgf) | 2.72KN(2 72Kgf) | 4.42KN(442Kgf ) | 94.20KN(9420Kgf) | |
| 0.7Mpa | 1.37KN (137Kgf) | 1.96KN( 196Kgf) | 3.17KN(31 7Kgf) | 5.15KN(515Kgf) | 109.90KN(10990Kgf) |
Overall dimention drawing:
| Model | A | B | C | D | E | F | G | H(max) | I | J | K | L | M |
| LL-50 | 100 | 30 | 16 | 300 | 30 | 220 | 10 | 180 | 105 | 12.5 | 22.5 | 20 | 15 |
| LL-63 | 150 | 50 | 16 | 330 | 70 | 290 | 150 | 180 | 125 | 12.5 | 22.5 | 20 | 15 |
| LL-80 | 200 | 60 | 20 | 325 | 75 | 380 | 200 | 180 | 175 | 12.5 | 22.5 | 20 | 15 |
| LL-100 | 200 | 60 | 20 | 325 | 75 | 380 | 200 | 180 | 175 | 12.5 | 22.5 | 20 | 15 |
| LL-125 | 260 | 80 | 20 | 370 | 80 | 450 | 200 | 200 | 200 | 12.5 | 22.5 | 20 | 15 |
Overall dimention drawing:
