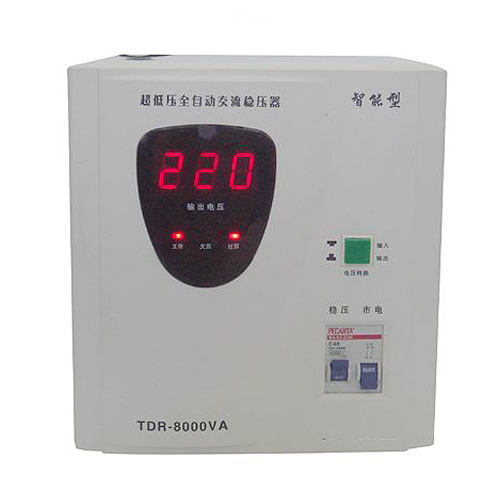

TDR-8000VA digital display voltage stabilizer
Main Features
●Stylish appearance,ultra-thin case
●Automatic voltage regulation
●Built-in transformer:relay type
●Quick reponse
●Wide input voltage range
●Short circuit &over load protection
●Selectable delay time
●LED display
|
Specification |
TDR-0.5K |
TDR-1K |
TDR-1.5K |
TDR-2K |
TDR-3K |
TDR-5K |
TDR-8K |
TDR-10K |
TDR-12K |
|
|
Input |
Phase |
Single phase |
||||||||
|
Voltage |
AC150V-250V |
|||||||||
|
Frequency |
50HZ±2% |
|||||||||
|
Output |
Voltage |
220V±7% |
||||||||
|
power factor |
0.8 |
|||||||||
|
Frequency |
50HZ±2% |
|||||||||
|
Protection |
Under Volt. |
AC184±4V |
||||||||
|
Over Volt. |
AC244V±4V |
|||||||||
|
Delay |
5sec/3min selectable |
|||||||||
|
Over load /short circuit |
Yes |
|||||||||
|
Packaging |
Pcs Per Carton |
8 |
4 |
1 |
||||||
|
Shipping Wt.(kg) |
39.6 |
45.2 |
51.6 |
38.4 |
43 |
17 |
19 |
21 |
22.5 |
|
|
Dimensions(mm) |
54.5*70*34.5 |
58.2*42.1*31.8 |
36.3*53.3*19.2 |
36.3*53.3*23 |
||||||
|
Efficiency |
AC-AC |
>90% |
||||||||
|
Acoustic |
Noise level |
≤50dB |
||||||||
|
|
Temperature |
-5℃～45℃ |
||||||||
|
Humidity |
20% to 90% |
|||||||||
