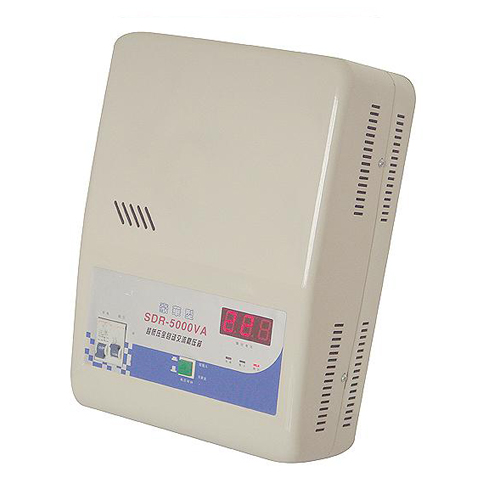

SDR-5000VA single phase voltage regulator
|
Specification |
SDR-0.5K |
SDR-1K |
SDR-1.5K |
SDR-2K |
SDR-3K |
SDR-5K |
SDR-8K |
SDR-10K |
SDR-12K |
|
|
Input |
Phase |
Single phase |
||||||||
|
Voltage |
AC150V-250V |
|||||||||
|
Frequency |
50HZ±2% |
|||||||||
|
Output |
Voltage |
220V±3% |
||||||||
|
power factor |
0.8 |
|||||||||
|
Frequency |
50HZ±2% |
|||||||||
|
Protection |
Under Volt. |
AC184±4V |
||||||||
|
Over Volt. |
AC246V±4V |
|||||||||
|
Delay |
5sec/3min selectable |
|||||||||
|
Over load /short circuit |
Yes |
|||||||||
|
Packaging |
Pcs Per Carton |
|
|
|
||||||
|
Shipping Wt.(kg) |
|
|
|
|
|
|
|
|
|
|
|
Dimensions(mm) |
|
|
|
|
||||||
|
Efficiency |
AC-AC |
>90% |
||||||||
|
Acoustic |
Noise level |
≤50dB |
||||||||
|
|
Temperature |
-5℃～45℃ |
||||||||
|
Humidity |
20% to 90% |
|||||||||
