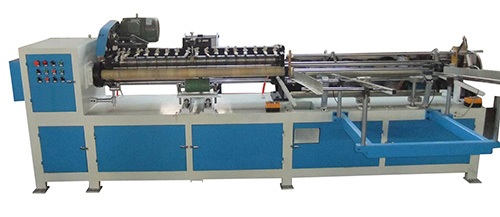

LLHG-D automatic paper tube recutter
Machinery parts
1) Parent tube holding unit
2) Automatic paper tube recutter for automatic paper loading, cutting and recut cores unloading.
Technical Parameter
Parent tube length:Up to 1600mm
Tube inner diameter: 50-152mm
Wall thickness: Up to 15mm
Mini. Recut length: 70mm
Blades set: Total: 11 blade sets
Cutting parrent: Automatic parent tube loading, automatic cutting, and automatic recut cores unloading
Control parrent: PLC+man-machine interface
Cutting speed: 5-6 parent tubes per minute
Main motor: 3KW --8P
Motor of blade shaft: 2.2KW--6P
Transport motor: 2.2KW--6P
Main electric parts: Schneider
Detect sensor: AUTONICS
Operator: 1 person
