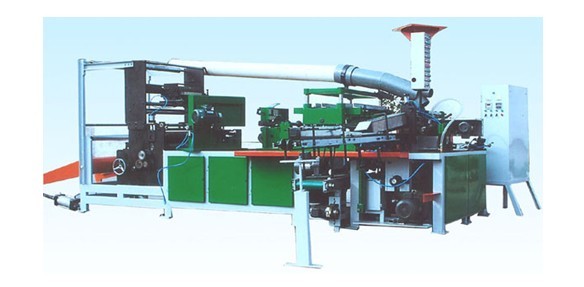

Item 01: DJZ-1 paper cone making machine
Technical Parameter:
1) Function: printing, paper ribbon edge trimming, cutting paper as required fan-shape, machinery hand feeding, gluing,
paper cone winding, automatic unloading and transporting
2) Applicable size: Any size of paper cone except 9°15′
3) Main motor: 14.55KW
4) Production speed: 28-60/min
5) Macinery size: 5850×2320×2790mm
Item 02: DJZ-3 drying room
Technical Parameter:
1) Function: automatic loading the paper cone piece by piece to the drying unit, automatic transporting,
and automatic unloading after drying
2) Applicable size: Any size of paper cone except 9°15′
3) Motor: 2.65KW
4) Electric heating: 21.6KW
5) Production speed: 28-60/min
6) Macinery size: 6850×1100×3200mm
7) Electric rod: 18 pcs
8) Inside temperature can be showed by the meter.
9) It takes around 30 minutes from the paper cone goes in to comes out.
Item 03: DJZ-4 paper cone finishing line (new design)
Technical Parameter:
1) Function: automatic feed the collected paper cones, cutting the gap on the cone bottom,
trimming the bottom, paper cone head curling, polishing, unload and collect
2) Applicable size: Any size of paper cone except 9°15′
3) Motor: 7.35KW
4) Production speed: 28-60/min
5) Macinery size: 2750*2820*1360mm
